价格:未填起订:20
供应:869
发货:1天内
- 适用车型OBDII
- 型号c005
- 用途汽车检测线

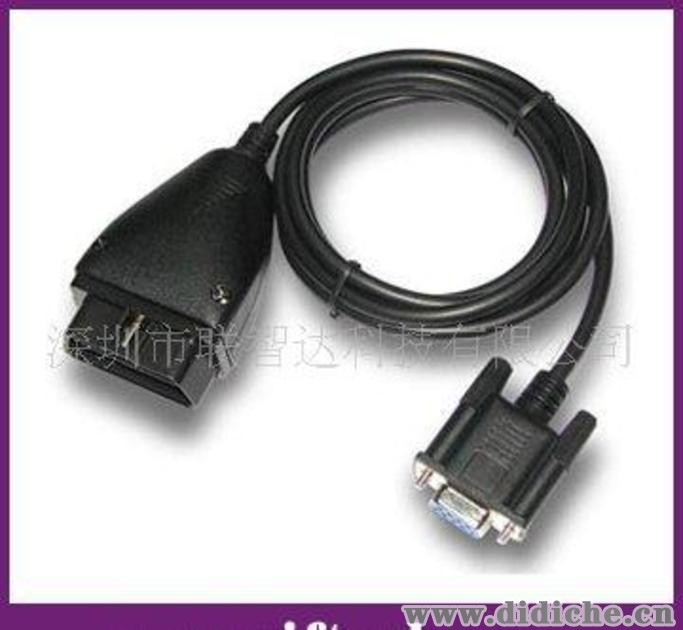

OBDII 16 PIN(Male) DB9PIN Female
• (J2850 BUS+) 2----------------1+2
• (Chassis Ground) 4-------------2
• (Signal Ground) 5--------------1
• (CAN High J-2284) 6------------3
• (ISO 9141-2 K Line) 7----------4
• (J2850 BUS- ) 10---------------6
• (CAN Low J-2284) 14------------5
• (ISO 9141-2 L Line) 15---------8
• (Battery Power) 16-------------9
Length:1500 MM
Diameter:5MM
