wx: 价格:未填
品牌:RAFI
起订:20
供应:252
发货:2天内

• 产品认证ROHS
• 额定发热电流100M（A）(A)
• 品牌RAFI
• 型号1.14.100.503/0000
• 用途广泛应用于汽车，印刷设备，家电，通讯，工程机械等领域
• 最高电压35（V）(V)

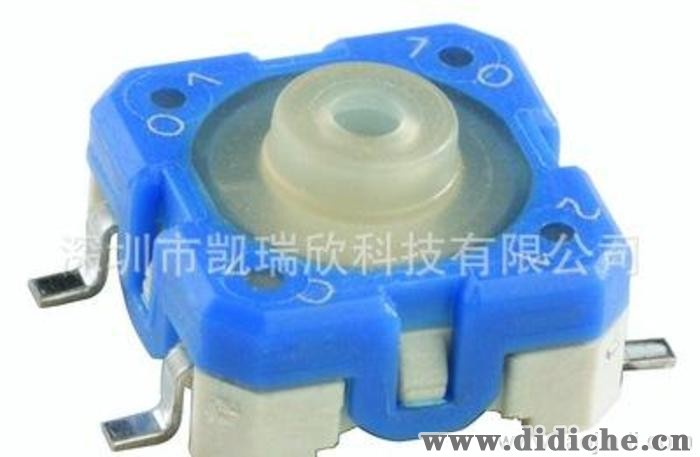

RACON 8 - Short-travel keyswitch, SMT gullwing (Z) terminals

Product number: 1.14.100.503/0000

DimensionsLength of housing8.4 mmWidth of housing8.4 mmHeight of housing4.90^±0.1mmMechanical designMountingsolderingTerminalsSMT Gullwing (Z) AnschlussContact systemsnap-action contactContact arrangement1 NOContact materialsAuIlluminationnoMechanical characteristicsOperating force3.3^±0.6NSwitching travel0.34^±0.1mmElectrical characteristicsRated voltage min.0.02 VRated voltage max.35 VRated current min.0.01 mARated current max.100 mARated power max. (ohmic load)1 WContact resistance when new max.100 mΩInsulation resistance10⁹ΩOther
specificationsAmbient temp. operating min.-40 °CAmbient temp. operating max.+90 °CResistance to environmentDIN EN 60068-2 -14,-30,-33 and -78Operating life1,000,000 cycleSolderability / Solder heat resistanceE DIN IEC 600 68-2-58Flammability of materialsUL 94 HBPackingtape and reel à 1000 piecesProdukt codeC1
